Flexible Design, Easy to Erect, Maximize the Land

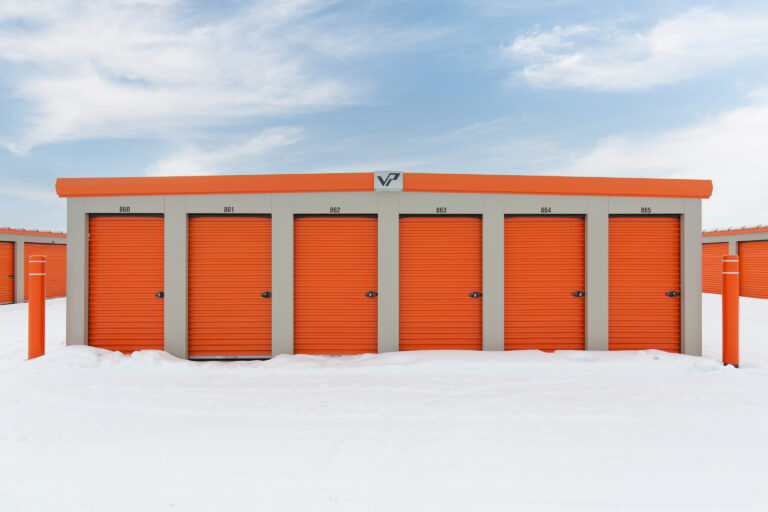

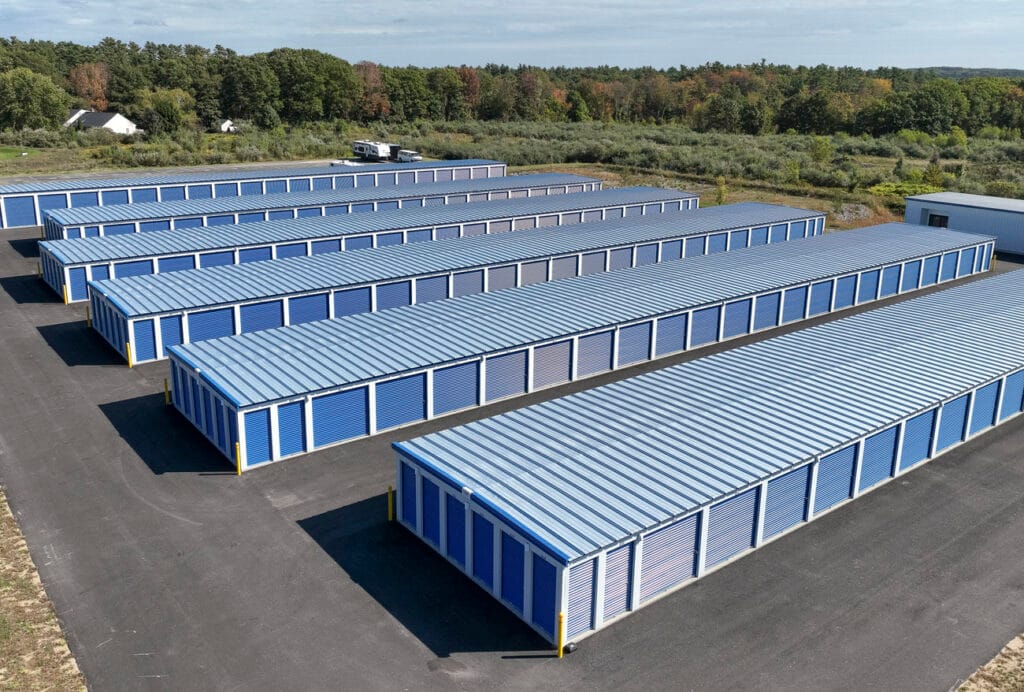

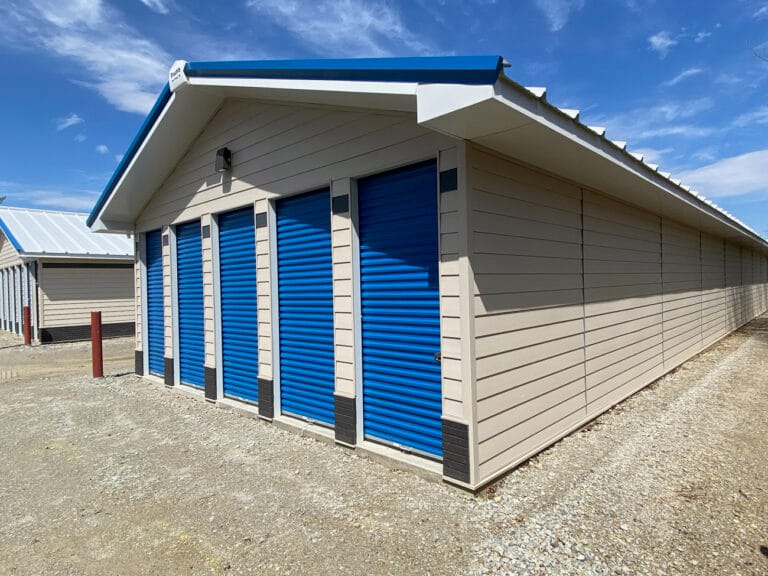

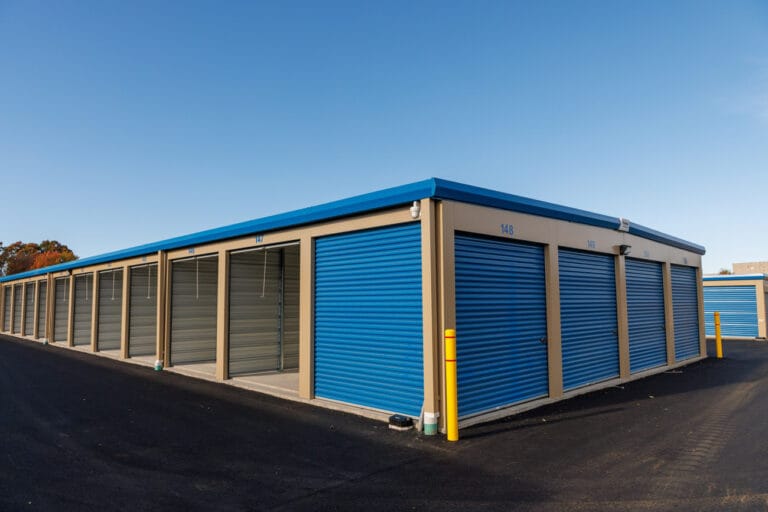

Single-story self-storage systems are the primary design for most self-storage projects. Its basic yet flexible design is easy to erect and modify to maximize the land. The Trachte™ One Story Self-Storage System allows for greater variety in bay sizes and eave heights by incorporating post and purlin construction. A key feature is the standard full 9′ wide doors on 10′ bays and full 11′ wide doors on 12′ bays. A wider door width offers easier access to the bay, which is especially important when renters use the unit for vehicle storage.

Trachte incorporates durability and ease of care into every building design. The one story features a single piece of roof sheeting (for 1/4″:12″ only, up to 65′ wide) to eliminate a ridge cap and screw penetrations which reduces the chance of roof leaks.

Buildings with low pitched roofs are the workhorse of the self-storage industry. But at times, the aesthetic appeal of a higher pitched roof is desired. Trachte buildings are available with a roof pitch of up to 8″ rise per 12″ of width.

The one story system design can be tailored to maximize building coverage, increase rental income, and give you a competitive edge.



Click and drag thumbnail images to skip back or ahead.


  • Specs & Building Plans
  • Enhancements
  • Colors
  • Doors
  • Warranty
  • Related Case Studies
Specifications

Specifications

Ground Snow Load 10 to 110 lb.
Wind Load 70 to 150 m.p.h.
Roof Pitch 1/4", 1/2", 1", 2", 3", 4", 5", 6", 7", 8":12" gable or single slope design
Standard Widths 10' – 200' in 5' increments (depending on roof pitch)
Standard Bay Widths 5', 8', 10', 11', 12', 15', 20'*
Standard Eave Heights 8'4", 9'4", 10'4", 11'4"
Exterior Framed Openings 18-gauge prefinished G-90 galvanized steel
Exterior Wall Panels 26-gauge A-panel
Horizontal Interior Partition Panels 29-gauge R-panel galvalume
Roof Panels 24-gauge colored or galvalume standing seam
26-gauge colored or galvalume R-panel
Rake and Eave Trim 26-gauge

* Other sizes available upon request
Note: Product specifications are subject to change without notice.

Building Plans

One Story Floorplan

One Story Footing Detail

One Story 3":12" End Elevation

One Story 1/4":12" End Elevation

One Story 3":12" Side Elevation

One Story 1/4":12" Side Elevation

Enhancements

Enhancements

Take your Trachte self storage facility to the next level with the enhancements listed below.

Colors

Door

Bright White

not available in trim

Cedar Red

Continental Brown

Polar Blue

Iced White

Garnet

Desert Tan

Royal Blue

Evergreen

Sunset Orange

Patriot Red

not available in trim

Shale

Matte Black

Ash Gray

Light Stone

Trim Colors

Iced White

Cedar Red

Continental Brown

Polar Blue

Evergreen

Garnet

Desert Tan

Royal Blue

Classic Beige

Sunset Orange

Matte Black

Patrician Bronze

Slate Gray

Cream Beige

Shale

Light Stone

Ash Gray

R-Panel Roof Colors

Cedar Red

Royal Blue

Evergreen

Iced White

Classic Beige

Slate Gray

Cream Beige

Galvalume

Standard roof finish

Light Stone

R-Panel roof available on Trachte buildings 1″ : 12″ pitch or higher. Galvalume is the standard finish; painted colors are available for a small upcharge.

Standing Seam Roof Colors Other premium colors are available. Contact Trachte for pricing and availability

Colonial Red

Closest match to Cedar Red. Premium color.

Harbor/Regal Blue

Closest match to Royal Blue. Premium color.

Evergreen / Classic Green

Galvalume

Standard roof finish

Regal White / Snow White

Closest match to Iced White

Roman/Hawaiian Blue

Closest match to Polar Blue. Premium color.

Patrician Bronze / Medium Bronze

Premium color.

Surrey Beige / Brownstone

Closest match to Classic Beige. Premium color.

Ash Gray

Special order. Premium color.

Light Stone

Premium color.

30 other colors are available. Contact Trachte for further information. Standing seam roof is standard on Trachte buildings up to 1″ : 12″ pitch, and optional on higher pitched buildings. Galvalume is the standard finish; painted colors are available for a small upcharge.

Wall Colors

Slate Gray

Iced White

Cream Beige

Classic Beige

Light Stone

Note: Colors shown may differ from actual colored panel material.
For a steel color sample, Contact Trachte.

Doors

Doors

Each Trachte self-storage system is designed and manufactured to include Trac-Rite® roll-up doors. Trac-Rite doors are built to work hard, with sturdy door construction that’s custom engineered for strong, smooth operation.

Trac-Rite® doors are:

Trouble-free

  • Easy installation and low maintenance save you time and money.
  • Rust-resistant components make life simple.
  • Smooth, quiet operation is what you can expect.
  • Factory-punched holes in brackets and guides allow for quick and precise installation.

Durable

  • Only the best raw material is used to shape the sturdy configuration of the door.
  • Tested and certified by an independent source so you are assured Trac-Rite’s doors meet your standards. 9′ wide doors are rated to 130 mph.*
  • EP3 extreme performance spring, the industry’s only corrosion-proof spring.

Versatile

  • Every door is manufactured to the inch providing a perfect fit.
  • Doors use little back room and head room giving more space within the storage unit.
  • SpaceGuard latch works with magnetic security systems.
  • A full line of accessory options enhance your door package.

Convenient

  • Tension adjustment device fine tunes door operation for optimal performance.
  • Optional space-saving motor operator meets ADA requirements.*
  • Seal-Rite pliable weather seal offers advanced protection.

Guaranteed

  • Covered by industry leading guarantees such as the unparalleled 10-year EP3 spring warranty.

Attractive

  • Array of colors to enhance your self-storage building.

* Does not apply to the portable container product.

EP<sup>3</sup> extreme performance spring, the industry's only corrosion-proof spring.
Tension adjustment device fine tunes door operation for optimal performance.
SpaceGuard latch works with magnetic security systems and is easily used to overlock.
Bottom bar features Seal-Rite pliable seal for advanced weather protection.
26-gauge corrugated swing door may be used for interior units including lockers.
Doors Models

944/944WL

988/988WL

The “WL” model may be needed when building codes require a specific m.p.h. rating.

Swing doors, both ribbed and flush panel, are available for any interior application.

Warranty

Warranty

40-Year* Paint Warranty

Trachte Building Systems’ 40-year* paint warranty provides coverage against peeling and flaking, keeping your facility looking great for years to come. Warranty includes Trac-Rite® doors. All Galvalume® roofs are warranted for 25 years.

3-Year Parts and Workmanship Warranty

Trachte warrants all materials, including Trac-Rite® doors, to be free of defect for a period of three (3) years.

* Some exceptions apply.
