Diversify Your Facility & Expand Your Market

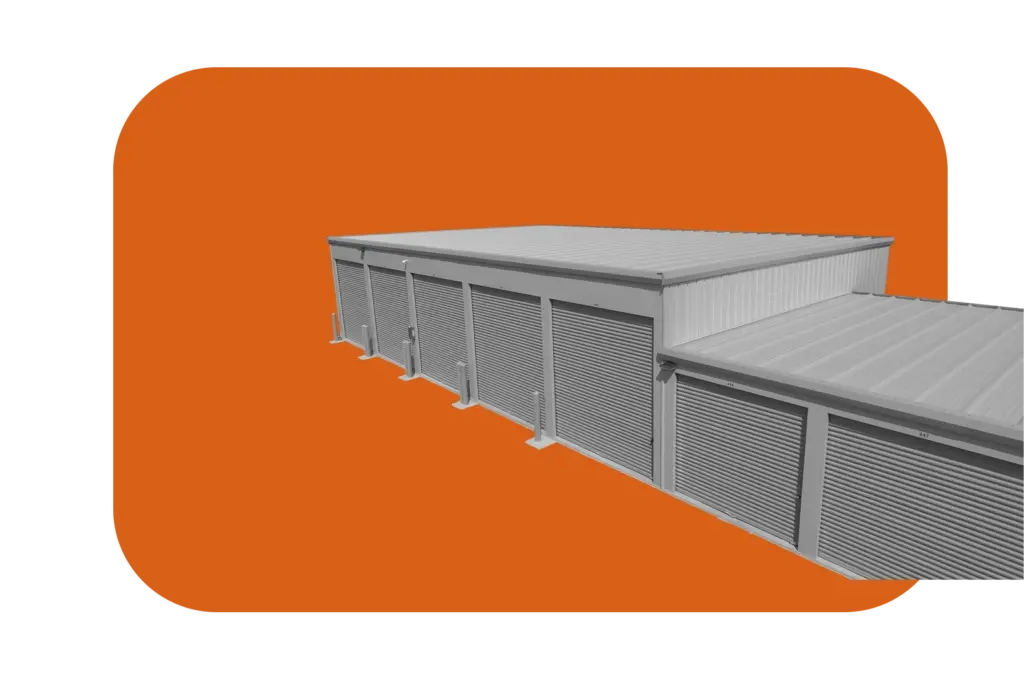

The Trachte™ Boat/RV/Commercial Self-Storage System is designed to accommodate nearly any use, but is ideal for storing sizeable recreational items such as boats and RVs, and is also used for many commercial storage applications. This design is perfect in tourist regions where demand is high for storage of recreational gear during the summer or winter months, and off-season for commercial storage.

The Boat/RV/Commercial building expands the typical market to include nontraditional renters, thereby allowing you to diversify your facility. It provides a solution for storing expensive investments much too large to warehouse within a standard design.

The galvanized structural steel gives protection from harsh environmental conditions such as sun, hail, and rain. Bay widths up to 20′, eave height up to 16′, and door opening height up to 14′ are sure to accommodate any large vehicle.

Photo Gallery

This 15' x 50' unit is Trachte's preferred method. The swing door is included in the sectional door.
1/19 This 15' x 50' unit is Trachte's preferred method. The swing door is included in the sectional door.
Large boat/RV storage with sectional doors.
2/19 Large boat/RV storage with sectional doors.
This building has a 14' wide bays and a 16' eave height. 12' x 14' tall sectional doors. Trachte recommends using an automatic door operator due to the weight of the door.
3/19 This building has a 14' wide bays and a 16' eave height. 12' x 14' tall sectional doors. Trachte recommends using an automatic door operator due to the weight of the door.
Boat/RV units are slate gray with matte black trim and shale doors. The bollards are painted black to match the building.
4/19 Boat/RV units are slate gray with matte black trim and shale doors. The bollards are painted black to match the building.
This project features evergreen roll up doors. The building is stepped to follow the grade changes, and includes walk doors for easy access to units. The large doors can be equipped with chain hoists for operation from within the storage unit.
5/19 This project features evergreen roll up doors. The building is stepped to follow the grade changes, and includes walk doors for easy access to units. The large doors can be equipped with chain hoists for operation from within the storage unit.
Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
6/19 Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
This large boat/RV unit has a 12' bay and a 14' eave height.
7/19 This large boat/RV unit has a 12' bay and a 14' eave height.
Boat/RV buildings can adjoin smaller traditional units.
8/19 Boat/RV buildings can adjoin smaller traditional units.
Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
9/19 Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
Boat/RV units can be abutted to Trachte’s conventional storage buildings.
10/19 Boat/RV units can be abutted to Trachte’s conventional storage buildings.

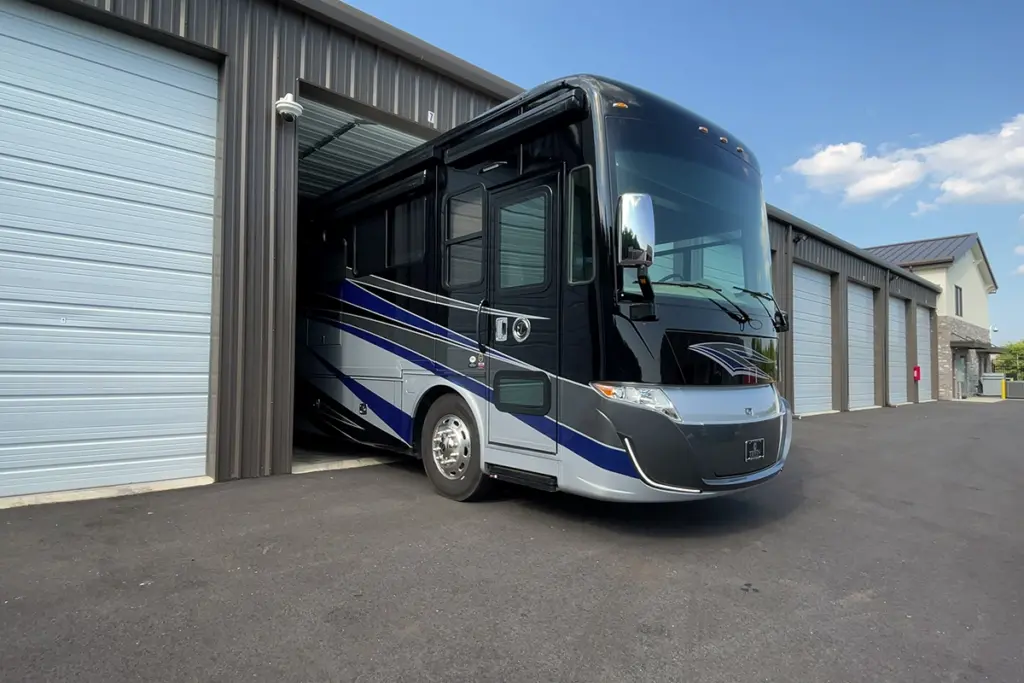

To accommodate the largest vehicles such as
11/19 To accommodate the largest vehicles such as "diesel pusher" RVs or fifth wheel campers, 14' tall door openings are available. This building is equipped with sectional doors and corrugated jambs and headers.
To accommodate the largest vehicles such as
12/19 To accommodate the largest vehicles such as "diesel pusher" RVs or fifth wheel campers, 14' tall door openings are available.
Large boat/RV storage with sectional doors and corrugated jambs and headers.
13/19 Large boat/RV storage with sectional doors and corrugated jambs and headers.
This building features large roll up doors, and is stepped to follow the elevation change. Bollards are position to protect the building and fire hydrant.
14/19 This building features large roll up doors, and is stepped to follow the elevation change. Bollards are position to protect the building and fire hydrant.
This building features commercial spaces in a customized version of a Trachte self-storage building.
15/19 This building features commercial spaces in a customized version of a Trachte self-storage building.
A close up view of business units. The storefront glass system by others was fit into Trachte's jamb and header system.
16/19 A close up view of business units. The storefront glass system by others was fit into Trachte's jamb and header system.
This storage facility features individual business units. Including this type of unit can help overcome city objections of low job creation related to self storage development.
17/19 This storage facility features individual business units. Including this type of unit can help overcome city objections of low job creation related to self storage development.
Self storage building with large contractor units including office spaces.
18/19 Self storage building with large contractor units including office spaces.
Self storage building with large contractor units including office spaces.
19/19 Self storage building with large contractor units including office spaces.
This 15' x 50' unit is Trachte's preferred method. The swing door is included in the sectional door.
Large boat/RV storage with sectional doors.
This building has a 14' wide bays and a 16' eave height. 12' x 14' tall sectional doors. Trachte recommends using an automatic door operator due to the weight of the door.
Boat/RV units are slate gray with matte black trim and shale doors. The bollards are painted black to match the building.
This project features evergreen roll up doors. The building is stepped to follow the grade changes, and includes walk doors for easy access to units. The large doors can be equipped with chain hoists for operation from within the storage unit.
Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
This large boat/RV unit has a 12' bay and a 14' eave height.
Boat/RV buildings can adjoin smaller traditional units.
Swing doors can be included in large units for easier access. However this means creating wider than usual units. The wider units reduce the number of units you'll fit into the space, and can reduce the project income significantly.
Boat/RV units can be abutted to Trachte’s conventional storage buildings.
To accommodate the largest vehicles such as
To accommodate the largest vehicles such as
Large boat/RV storage with sectional doors and corrugated jambs and headers.
This building features large roll up doors, and is stepped to follow the elevation change. Bollards are position to protect the building and fire hydrant.
This building features commercial spaces in a customized version of a Trachte self-storage building.
A close up view of business units. The storefront glass system by others was fit into Trachte's jamb and header system.
This storage facility features individual business units. Including this type of unit can help overcome city objections of low job creation related to self storage development.
Self storage building with large contractor units including office spaces.
Self storage building with large contractor units including office spaces.

Click and drag thumbnail images to skip back or ahead.

  • Specs & Building Plans
  • Enhancements
  • Colors
  • Doors
  • Warranty
  • Related Case Studies
Specifications

Specifications

Ground Snow Load 10 to 110 lb.
Wind Load 70 to 150 m.p.h.
Roof Pitch 1/4", 1/2", 1", 2", 3", 4", 5", 6", 7", 8":12" gable or single slope design
Standard Widths 20', 25', 30', 35', 40', 50', 60', 70'*
Standard Bay Widths 5' to 20'
Standard Eave Heights 8'4" to 16'0"
Exterior Wall Panels 26-gauge A-panel
Interior Partition Panels 29-gauge R-panel galvalume
Roof Panels 24-gauge galvalume standing seam
26-gauge galvalume R-panel
Rake and Eave Trim 26-gauge

* Other sizes available upon request

Note: Product specifications are subject to change without notice.

Building Plans

North Elevation

East Elevation

Floorplan

Enhancements

Enhancements

Take your Trachte self storage facility to the next level with the enhancements listed below.

One Story Multi Story Block Perimeter Canopy Conversion System
Automatic Doors*
Block Exteriors*
Brick Exteriors*
Canopies/Porches
Climate Control
Colored Roofs
Dryvit™ or EIFS*
Elevators*
Glass Fronts*
Gutters and Downspouts
Hipped Roofs
Insulation
Mansards
Offices
Overhangs
Shingle Roofs*
Stone Exteriors*
Stucco Exteriors*
Towers
Colors

Door Colors

Bright White

not available in trim

Cedar Red

Continental Brown

Polar Blue

Iced White

Garnet

Desert Tan

Royal Blue

Evergreen

Sunset Orange

Patriot Red

not available in trim

Shale

Matte Black

Light Stone

Ash Gray

not available in trim

Lime Green

not available in trim

Yellow

not available in trim

Trim Colors

Iced White

Cedar Red

Continental Brown

Polar Blue

Evergreen

Garnet

Desert Tan

Royal Blue

Classic Beige

Sunset Orange

Matte Black

Patrician Bronze

Slate Gray

Cream Beige

Shale

Light Stone

Ash Gray

R-Panel Roof Colors

Cedar Red

Royal Blue

Evergreen

Iced White

Classic Beige

Slate Gray

Cream Beige

Galvalume

Light Stone

Matte Black

Included on Trachte buildings 1″ : 12″ pitch or more. Optional on all other building types.

Standing Seam Roof Colors

Colonial Red

Closest match to Cedar Red. Premium color.

Harbor / Regal Blue

Closest match to Royal Blue. Premium color.

Evergreen / Classic Green

Galvalume

Standard finish.

Regal White / Snow White

Closest match to Iced White.

Roman Blue / Hawaiian Blue

Closest match to Polar Blue. Premium color.

Patrician Bronze / Medium Bronze

Premium color.

Surrey Beige / Brownstone

Closest match to Classic Beige. Premium color.

Ash Gray

Special order. Premium color.

Light Stone

Premium color.

30 other colors are available. Contact Trachte for further information.

Wall Colors

Slate Gray

Iced White

Cream Beige

Classic Beige

Ash Gray

Light Stone

Note: Colors shown may differ from actual colored panel material.
For a steel color sample, Contact Trachte.

Doors

Doors

Each Trachte self-storage system is designed and manufactured to include Trac-Rite® roll-up doors. Trac-Rite doors are built to work hard, with sturdy door construction that’s custom engineered for strong, smooth operation.

Trac-Rite® doors are:

Trouble-free

  • Easy installation and low maintenance save you time and money.
  • Rust-resistant components make life simple.
  • Smooth, quiet operation is what you can expect.
  • Factory-punched holes in brackets and guides allow for quick and precise installation.

Durable

  • Only the best raw material is used to shape the sturdy configuration of the door.
  • Tested and certified by an independent source so you are assured Trac-Rite’s doors meet your standards. 9′ wide doors are rated to 130 mph.*
  • EP3 extreme performance spring, the industry’s only corrosion-proof spring.

Versatile

  • Every door is manufactured to the inch providing a perfect fit.
  • Doors use little back room and head room giving more space within the storage unit.
  • SpaceGuard latch works with magnetic security systems.
  • A full line of accessory options enhance your door package.

Convenient

  • Tension adjustment device fine tunes door operation for optimal performance.
  • Optional space-saving motor operator meets ADA requirements.*
  • Seal-Rite pliable weather seal offers advanced protection.

Guaranteed

  • Covered by industry leading guarantees such as the unparalleled 10-year EP3 spring warranty.

Attractive

  • Array of colors to enhance your self-storage building.

* Does not apply to the portable container product.
EP<sup>3</sup> extreme performance spring, the industry's only corrosion-proof spring.
Tension adjustment device fine tunes door operation for optimal performance.
SpaceGuard latch works with magnetic security systems and is easily used to overlock.
Bottom bar features Seal-Rite pliable seal for advanced weather protection.
26-gauge corrugated swing door may be used for interior units including lockers.
Doors Models

944/944WL

988/988WL

The “WL” model may be needed when building codes require a specific m.p.h. rating.

Swing doors, both ribbed and flush panel, are available for any interior application.

Warranty

Warranty

40-Year* Paint Warranty

Trachte Building Systems’ 40-year* paint warranty provides coverage against peeling and flaking, keeping your facility looking great for years to come. Warranty includes Trac-Rite® doors. All Galvalume® roofs are warranted for 25 years.

3-Year Parts and Workmanship Warranty

Trachte warrants all materials, including Trac-Rite® doors, to be free of defect for a period of three (3) years.

* Some exceptions apply.
